ATEN 宏正 CE820 HDMI KVM信号延长器 HDBaseT™ 2.0技术 USB接口
作者:管理员    发布于:2020-01-03 14:07:40    文字:【】【】【
摘要:通过单一Cat6/6a线缆/2L-2910 Cat6线缆延长视频、音频、USB、RS-232 及以太网络信号 HDMI (3D, 色深, 1080P, 4K);符合HDCP 2.2规范 远距离高视频质量 • HDBaseT™标准模式- 分辨率高达4K@100米(Cat6/6a) • HDBaseT™远距模式- 分辨率高达1080P@150米 支持双声道立体声音频- 满足高品质音频传输应用
ATEN宏正CE820 USB HDMI HDBaseT™ 2.0 KVM信号延长器整合最新的HDBaseT™ 2.0技术, 通过单一Cat6 或2L-2910 Cat6线缆传输4K HDMI视频、立体声音频、USB、以太网络和 RS-232信号,距离可达100米。HDBaseT™ 2.0可提供目前市 面上最可靠的整合式传输技术,并为CE820带来远距离传输能 力,可传输1080P高品质信号长达150米。CE820的线缆安装 简易并支持各种信号,特别适用于需要便利远程访问的应用, 例如交通指挥中心、医院、工业仓库和延伸工作站等地。

HDBaseT™ 2.0技术
• 通过单一Cat6/6a线缆/2L-2910 Cat6线缆延长视频、音频、USB、RS-232 及以太网络信号
• 增强位错误侦测与修正,可在高画质视频传输期间防止信号干扰
• 远程延长器支持HDBaseT™ 信号传输状态侦测与LED指示
EDID缓冲器可确保顺利开机并以最高质量显示
HDMI (3D, 色深, 1080P, 4K);符合HDCP 2.2规范
远距离高视频质量
• HDBaseT™标准模式- 分辨率高达4K@100米(Cat6/6a/2L-2910)
• HDBaseT™远距模式- 分辨率高达1080P@150米
远距模式切换开关-快速切换HDBaseT™标准及远距模式
USB 2.0连接端口- 确保周边设备的高传输速度
支持双声道立体声音频- 满足高品质音频传输应用
通过单一按钮即可执行PC唤醒功能
内建8KV/15KV静电保护(接触放电8KV;空气放电15KV)

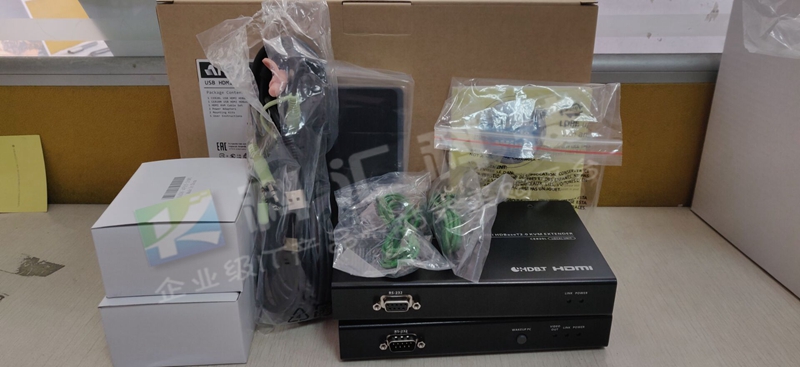

物品清单

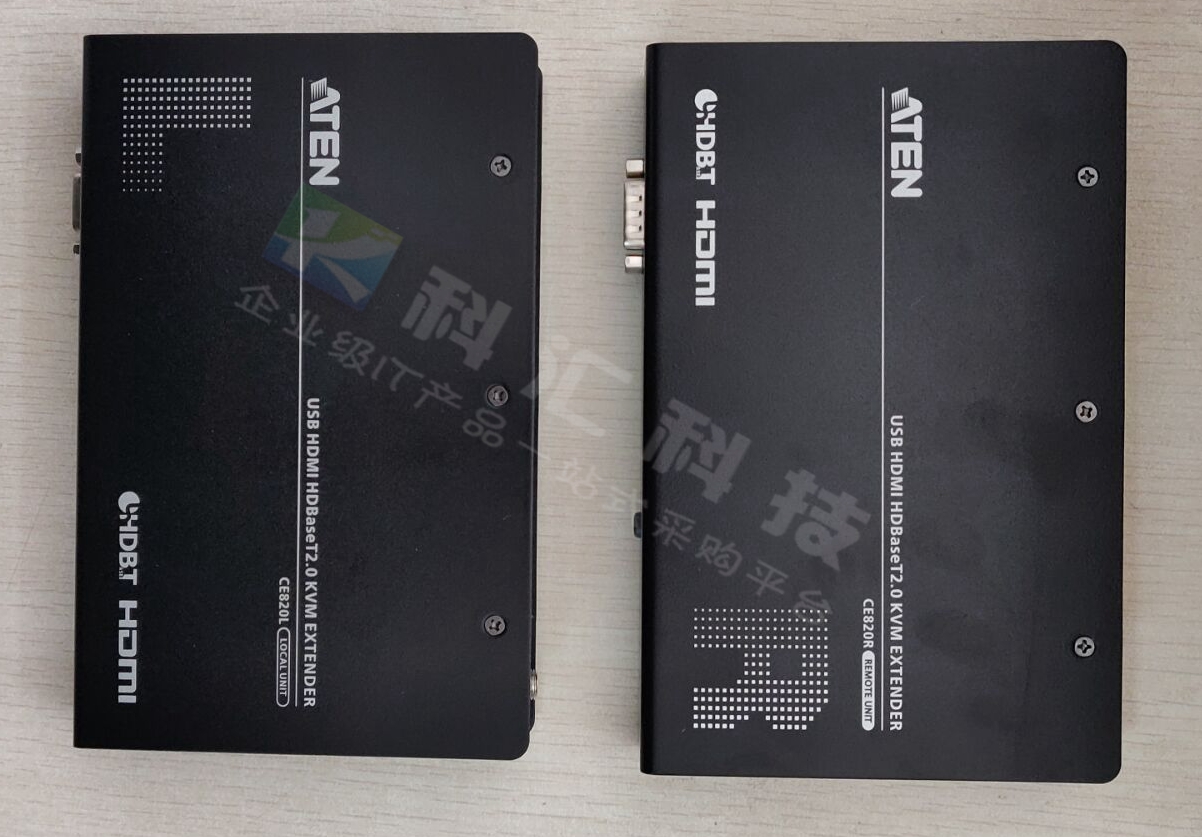

1x CE820L USB HDMI HDBaseT 2.0 KVM 信号延长器 (本地设备)
1x CE820R USB HDMI HDBaseT 2.0 KVM 信号延长器 (远程设备)
1x HDMI KVM 线缆组 (HDMI, USB, Audio; 1.8m)
2x 电源适配器
2x 机架安装配件
8x 脚垫
1x 使用说明
-------------------------------------------------------------------------------------------------
The ATEN CE820 USB HDMI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K HDMI video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE820 is ideal for applications where convenient remote access is required – such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Supports HDBaseT™ 2.0 technology
• Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
• Status detection and LED indication for HDBaseT™ signal transmission on remote unit
EDID Buffer for smooth power-up and the highest quality display
HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
Long distance with superior video quality
• HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
• HDBaseT™ Long-Reach mode up to 1080P @ 150 m
Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
Supports individual 2-channel stereo audio and USB 2.0 full speed ports
Supports PC wakeup function via single pushbutton
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

Package Contents
1x CE820L USB HDMI HDBaseT 2.0 KVM Extender (Local Unit)
1x CE820R USB HDMI HDBaseT 2.0 KVM Extender (Remote Unit)
1x HDMI KVM Cable Set (HDMI, USB, Audio; 1.8m/6ft)
2x Power Adapters
2x Mounting Kits
1x User Instructions

FunctionCE820LCE820R

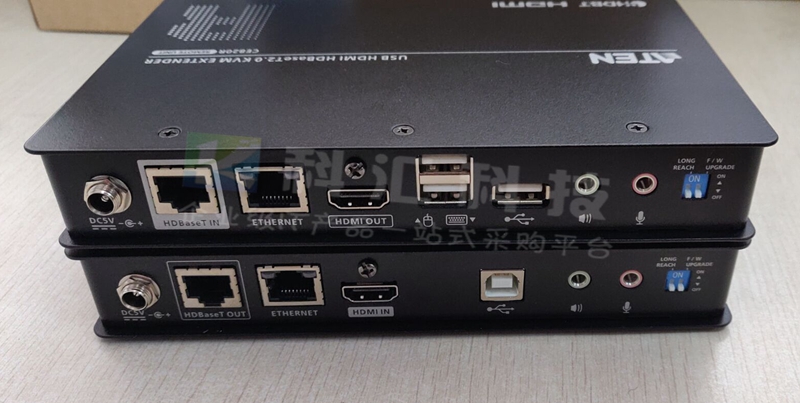

Connectors
Console PortsN/A1 x HDMI Female (Black)
3 x USB Type A Female
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x RJ-45 Female (Black)
KVM Ports1 x HDMI Female (Black)
1 x USB Type B Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x RJ-45 Female (Black)
N/A

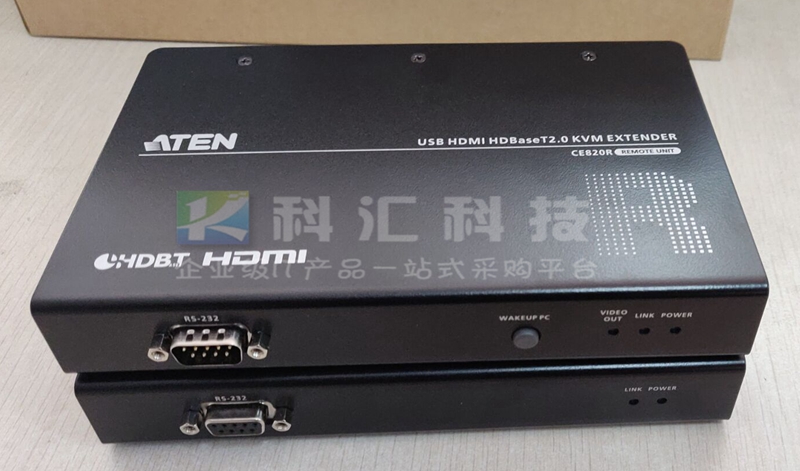

RS-2321 x DB-9 Female (Black)1 x DB-9 Male (Black)
Power1 x DC Jack with locking1 x DC Jack with locking
Unit To Unit1 x RJ-45 Female (Black)1 x RJ-45 Female (Black)
LEDs
Power1 (Green)1 (Green)
Link1 (Orange)1 (Orange)
Video OutputN/A1 (Orange)
Switches
Long Reach Mode Switch1 x Slide Switch1 x Slide Switch
Firmware Upgrade1 x Slide Switch1 x Slide Switch
Pushbuttons
Wakeup buttonN/A1 x Push button
VideoUp to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power ConsumptionDC5V:2.87W:13BTUDC5V:5.37W:40BTU
Environmental
Operating Temperature0–40°C0–40°C
Storage Temperature-20–60°C-20–60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight0.63 kg ( 1.39 lb )0.65 kg ( 1.43 lb )
Dimensions (L x W x H)18.20 x 12.19 x 2.87 cm
(7.17 x 4.8 x 1.13 in.)
18.20 x 12.19 x 2.87 cm
(7.17 x 4.8 x 1.13 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
