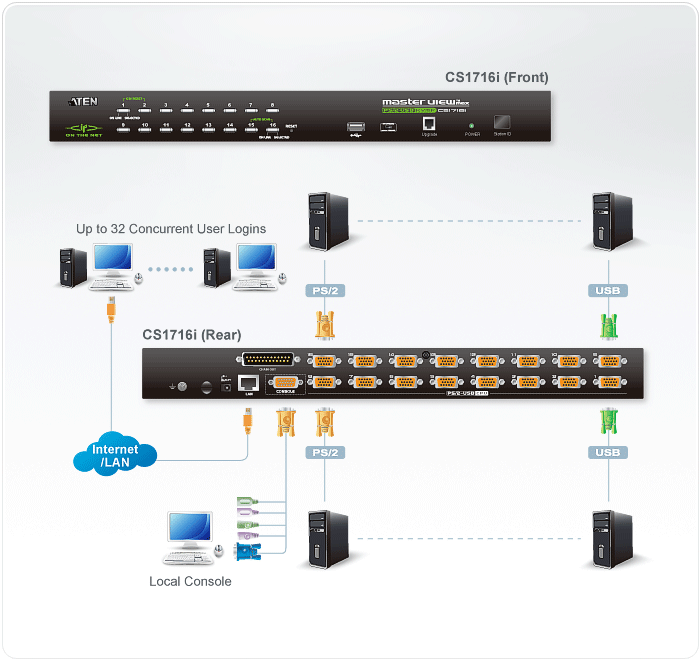

连线图：

技术规格：

1-Local/Remote Share Access

16-Port PS/2-USB KVM over IP Switch

CS1716i

The CS1716i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1716i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

Among the CS1716i other outstanding features, a Panel Array Mode provides the ability to monitor up to 16 servers per switch; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

The CS1716i supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 128 bit encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CS1716i also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.

These powerful features not only help administrators manage their server room in an efficient and flexible manner, they provide a cost effective management solution for the SMB sector.

ROHS Weee

Share   Add to Compare

Package Contents

1x CS1716i KVM over IP Switch

2x Custom KVM Cable Cables (1 x PS/2; 1 x USB)

1x Console Cable

1x Firmware Upgrade Cable

1x Mounting Kit

1x Foot Pad Set (4 pcs)

1x Power Adapter

1x Software CD

1x User Instructions

 Features

 Diagram

 Specifications

 Applications

 Support and Download

Management

Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus

Up to 32 concurrent logins

Multilanguage web UI support featuring a tree-structured local and remote OSD

Adjustable video quality for flexible adaptation to diverse network environments

Auto Scan feature for monitoring user-selected computers

Broadcast mode; operations simultaneously performed on all selected computers (software installation, system-wide shutdown, etc.).

Firmware upgradable

Backup and restore configuration and user account settings

Event logging

Enable/disable browser access

IPv6 capable

Ease-to-Use Interface

Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity

Multiplatform client support (windows, Mac OS X, Linux, Sun)

Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)

Port names automatically reconfigured when station sequence is changed

Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view

Windows client and Java client software support; Java client works with all operating systems

Advanced Security

Secure keyboard/mouse/video transmission via RC4 128 bit encryption

Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser

Two level password security - up to 64 user accounts with separate profiles for each

External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory

Support for IP/MAC Filter

Local and remote access logged and authenticated

Virtual Remote Desktop

Resizable remote desktop window

Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions

Mouse DynaSync™

On-screen keyboard with multilanguage support

BIOS-level access

Hardware

16-port remote access KVM switch - monitor and control up to 16 computers from a single KVM console

Daisy chain up to 15 additional units - control up to 256 computers from a single console*

Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position

Hot pluggable - add or remove computers without having to power down the switch

Multiplatform support - Windows, Linux, Mac, and Sun

Front panel USB hub allows connected computers to access USB peripherals

Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection

USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere

Supports USB keyboards for PC, Mac and Sun

Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions

Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution

Rack mountable in a 19" (1U) system rack

*Compatible KVM Switches include the following: ACS1208A, ACS1216A, CS1708, CS1716, CS1708A, CS1716A, KH1508, KH1516
