IP8000 ATEN 宏正 远程控管PCI卡(卡式CN8000)
编号：IP8000
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：100 克 IP8000是一张具备控管功能的PCI卡，管理人员可从远程访问及控管已安装IP8000的服务器；只要透过标准的网络浏览器或独立的Windows及Java应用程序，管理人员即可轻松从远程进行跨平台的服务器存取与管理
商品售价：￥0.00
订购数量：
个
|
IP8000是一张具备控管功能的PCI卡，管理人员可从远程访问及控管已安装IP8000的服务器；只要透过标准的网络浏览器或独立的Windows及Java应用程序，管理人员即可轻松从远程进行跨平台的服务器存取与管理。
功能特点：

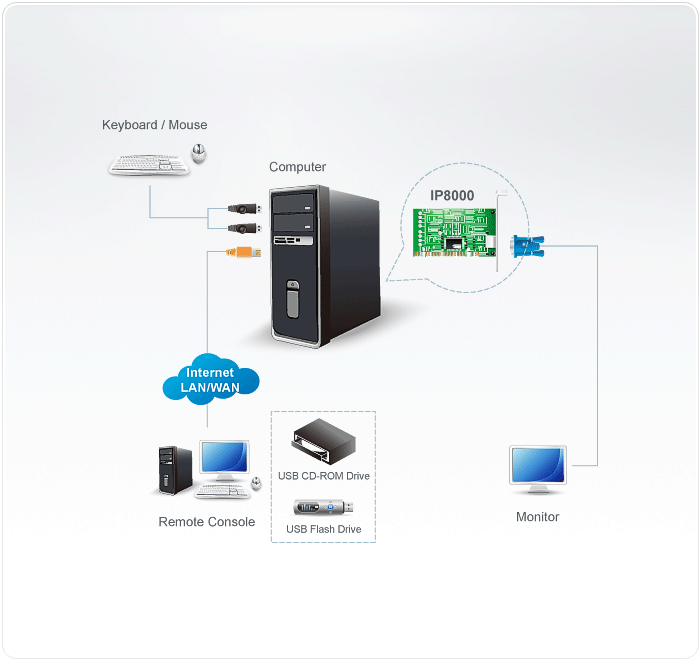

连线图：
技术规格：
| 电脑 | 直接 | 1 | |
| 控制端连接数 | 1 | ||
| 接口 | 电脑 | 显示器/ 键盘/ 鼠标 |
1 x SPHD-15 母头(绿) |
| 视频输出 | 1 x HDB-15 母头 (蓝) | ||
| LAN | 1 x RJ-45 母头 | ||
| 电源 | 1 x DC电源插座 | ||
| LED指示灯 | |||
| 联机 | 1 (绿) | ||
| 10/100 Mbps | 1 (绿 / 橘) | ||
| 仿真功能 | 键盘/鼠标 | USB | |
| 视频分辨率 | 1600 x 1200@60Hz; DDC2B | ||
| 耗电量 | DC5V, 6W | ||
| 作业环境 | 操作温度 | 0 - 50°C | |
| 储存温 | -20-60°C | ||
| 湿度 | 0 - 80% RH, 无凝结 | ||
| 机体属性 | |||
| 重量 | 0.10 kg | ||
| 尺寸 (长×宽×高) |
15.35 x 12.00 x 2.15 cm | ||
Remote Management PCI Card
IP8000
The IP8000 is a PCI card implementation of a control unit that provides "over-IP" access and control of the server it is installed in. The IP8000 allows multi-platform access and control of the server from remote locations using a standard Internet browser or with stand-alone Windows and Java applications
ROHS Weee
Share Add to Compare
Package Contents
1x Remote Management PCI Card
1x Custom KVM Cable Set
1x Feature Cable
1x Power Adapter
1x Software CD
1x User Instructions
Features
Diagram
Specifications
Applications
Support and Download
Standard PCI-sized card provides over-IP access and control of a remote server from anywhere in the world
Virtual media via USB 2.0 data transmission
Remote power control and reset support
Up to 64 user accounts - Up to 32 concurrent user logins for single-bus sharing
Message board feature allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
External authentication support: RADIUS
Web-based Windows and Java implementations allow the server to be controlled from any browser
Windows GUI and Java client software for non-browser access - the Java client works with practically all operating systems
Supports TCP/IP, HTTP, HTTPS, UDP, DHCP, SSL, ARP, DNS, ICMP, CHAP
Supports 10Base-T, 100Base-T
Superior video resolution* up to 1600 x 1200 @ 60Hz; 24-bit color depth for remote sessions
Bandwidth optimization via grayscale and video quality setting
Advanced security features include password protection and advanced encryption technologies
Secure 128-bit SSL encryption
Enable/disable browser operation
Three level authentication - Multi - Administrators, Users, Viewers
Event logging
Remote fi rmware upgrading
Host-side OS support– Windows ; Redhat 7.1 and above; FreeBSD, Novell
