PS/2 VGA/Audio Cat 5 KVM Extender with Deskew (1280 x 1024@300m)

CE370

The CE370 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE370 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location - away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances.

The CE370 supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The CE370's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.

ROHS Weee

Share   Add to Compare

Package Contents

1x CE370L PS/2 KVM Extender (Local Unit)

1x CE370RQ PS/2 KVM Extender (Remote Unit)

1x Custom PS/2 KVM Cable Set (1.8 m)

2x Power Adapters

1x Mounting Kit

1x User Instructions

 Features

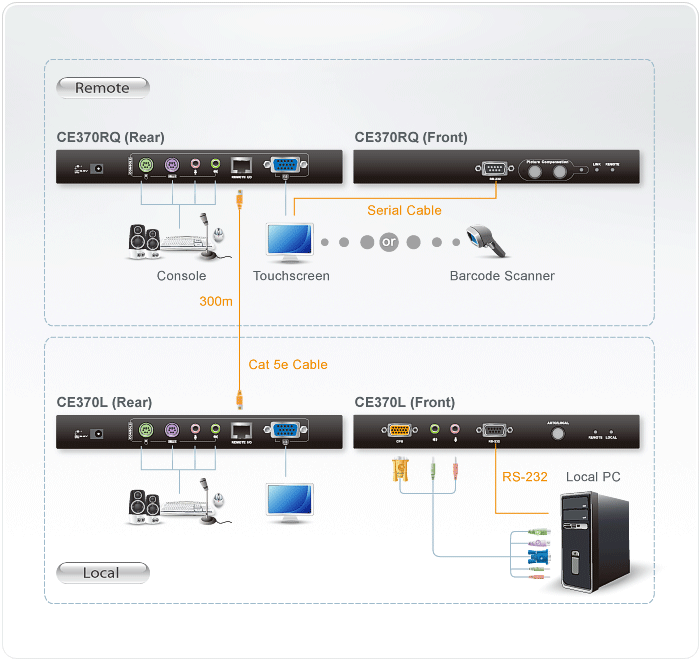

 Diagram

 Specifications

 Applications

 Support and Download

Local and Remote Units connect at distances up to 300 m using Cat 5e cable

Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance

On Screen Display - conveniently adjust video quality with the intuitive OSD menu system

Manually tune the R/G/B settings, store and retrieve

Adjustable gain control - automatically and manually adjust signal strength to compensate for distance

Dual console operation - control your system from both the local and remote keyboard, monitor, and mouse consoles

Built-in ASIC for greater reliability and compatibility

Auto Signal Compensation (ASC) and storage of settings

RS-232 serial ports - connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps)

Audio Enabled - supports stereo speakers and microphone

Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button

Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

Superior video quality - 1920 x 1200@60Hz(150 m), 1280 x 1024@60Hz(300 m)

Superior Audio - no loss in audio quality at 300 m

Supports Wide Screen formats *

Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B

Hot pluggable

Rack mountable

Easy to install - no software required - connecting cables to the devices is all it takes

* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator.
