CS682 ATEN 宏正 2端口USB 2.0 DVI多电脑切换器 有外接切换按钮
编号：CS682
品牌：ATEN [查询该品牌全部商品] 单位：个 积分：0 重量：550 克 规格： 型号： CS682提供DVI功能、USB 2.0接口设备分享、及2.1重低音立体环绕音效， CS682带领Petite系列KVM产品在技术上又向前迈进了一大步。此款新产品配备外接式切换按键，使用者可以将CS682主装置放在距离较远的方便位置，并直接从桌面通过切换按键执行连接端口的切换。
CS682亦支持Video Dynasync™显示器动态显示技术，其可储存控制端显示器的延伸显示辨识码(Extended Display Identification Data, EDID)，以保持最佳显示器显示分辨率。此外，除了热键切换，CS682提供最新的鼠标连接端口切换功能，只要轻按两下USB鼠标上的滚轮，便可切换连接端口。CS682更具备电源开启侦测功能，若其中一台电脑电源关闭，CS682会自动切换至下一台电源开启的电脑。 CS682整合了DVI功能、方便的USB 2.0接口设备分享、以及操作简易的特性，为使用者提供桌上多媒体应用的创新技术。
商品售价：￥0.00
订购数量：
个
|
商品介绍
详细参数
中石油管道设计公司（CPE），桌面虚拟
化项目 一次性采购 400台 CS682 ,灵活切
换业务系统与办公系统。
2端口USB 2.0 DVI多电脑切换器
CS682提供DVI功能、USB 2.0接口设备分享、及2.1重低音立体环绕音效， CS682带领Petite系列KVM产品在技术上又向前迈进了一大步。此款新产品配备外接式切换按键，使用者可以将CS682主装置放在距离较远的方便位置，并直接从桌面通过切换按键执行连接端口的切换。
CS682亦支持Video Dynasync™显示器动态显示技术，其可储存控制端显示器的延伸显示辨识码(Extended Display Identification Data, EDID)，以保持最佳显示器显示分辨率。此外，除了热键切换，CS682提供最新的鼠标连接端口切换功能，只要轻按两下USB鼠标上的滚轮，便可切换连接端口。CS682更具备电源开启侦测功能，若其中一台电脑电源关闭，CS682会自动切换至下一台电源开启的电脑。
CS682整合了DVI功能、方便的USB 2.0接口设备分享、以及操作简易的特性，为使用者提供桌上多媒体应用的创新技术。
一组配备DVI显示器的控制端管理两台USB电脑
功能特点：
附注:* 需外接额外电源
** • PC键盘组合可仿真Mac/Sun键盘
• Mac/Sun键盘仅能与Mac/Sun电脑搭配使用

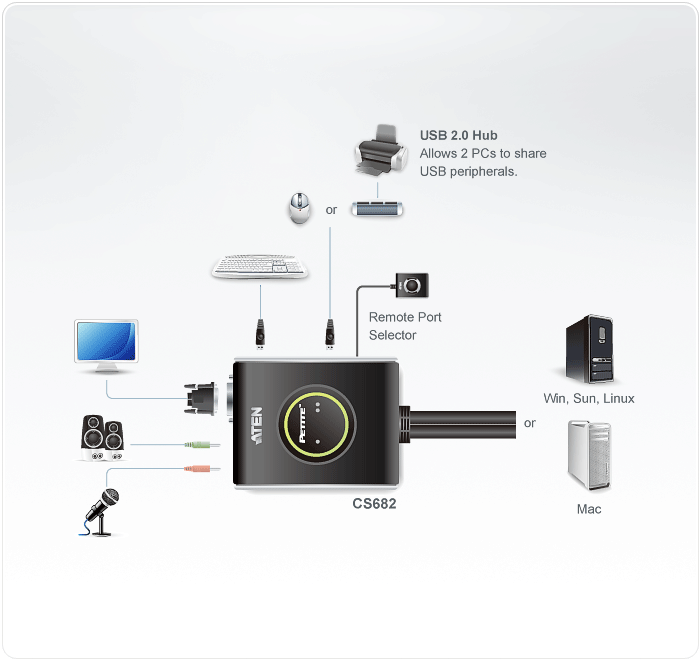

连线图：
技术规格：
| 电脑连接数 | 2 | ||
| 电脑切换选择 | 外接式切换按键,鼠标,热键 | ||
| 连接接口 | 控制端 | 键盘 | 1 x USB Type A 母头 (银) |
| 显示器 | 1 x DVI-D 母头 (白) | ||
| 鼠标 | 1 x USB Type A 母头 (银) | ||
| 扬声器 | 1 x Mini Stereo Jack 母头 (绿) | ||
| 麦克风 | 1 x Mini Stereo Jack 母头 (粉红) | ||
| 电脑端 | 键盘 | 2 x USB Type A 公头 (紫) | |
| 显示器 | 2 x DVI-D 公头 (黑) | ||
| 鼠标 | 2 x USB Type A 公头 (黑) | ||
| 扬声器 | 2 x Mini Stereo Jack 母头 (绿) | ||
| 麦克风 | 2 x Mini Stereo Jack 母头 (粉红) | ||
| 外接式切换按键 | 1 x Mini Stereo Jack | ||
| LED指示灯 | 电脑 | 2 (绿) | |
| 外接式切换按键 | 2 (绿) | ||
| 线材长度 | 电脑端 | 2 x 1.2 m | |
| 外接式切换按键 | 1.8 m | ||
| 模拟方式 | 键盘 / 鼠标 | USB | |
| 视频分辨率 | 1920 x 1200 | ||
| 扫瞄区间 | 3, 5, 10, 20 秒 (预设为5秒) | ||
| 耗电量 | 5V, 3.05W | ||
| 作业环境 | 操作温度 | 0 - 50°C | |
| 储存温度 | -20 - 60°C | ||
| 湿度 | 0 - 80% RH, 无凝结 | ||
| 机体属性 | 外壳 | 塑料 | |
| 重量 | 0.50 kg | ||
| 尺寸 (长 x 宽 x 高) |
11.10 x 7.80 x 2.50 kg | ||
2-Port USB DVI/Audio Cable KVM Switch
CS682
The CS682 takes a giant step forward from prior models in the Petite series, by offering DVI functionality, USB 2.0 peripheral sharing, and a rich bass experience for 2.1 surround systems. Another new feature of the CS682 is the implementation of a remote port selector. This means that you can now control port switching from the desktop while the switch itself can be placed in a convenient, out of the way, location.
Furthermore, the CS682 features enhanced Video DynaSync™ technology, which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution. Also, in addition to new hotkeys, the CS682 offers the latest mouse port-switching function - simply double-click on the scroll wheel of a USB mouse to change ports. Finally, the CS682's new Power on detection feature means that if one of the computers is powered off, switch will automatically switch to the other powered-on computer.
Featuring an unbeatable combination of DVI functionality, USB 2.0 peripheral sharing convenience, and enhanced user-friendly operations, the CS682 allows users to keep up with the latest innovations in desktop multimedia applications.
ROHS Weee
Share Add to Compare
Package Contents
1x CS682 2-Port USB 2.0 DVI KVM Switch
1x Remote Port Selector
1x User Instructions
Awards won by this product
Features
Diagram
Specifications
Applications
Support and Download
One DVI video console controls two USB computers
Fully DVI-Digital specification compliant
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
Computer selection via remote port selector, hotkeys, and USB mouse
Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support - Windows, Linux, Mac and Sun
Compact design, built-in all-in-on cables (2 x 1.2 m)
Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
Superior video quality - up to 1920 x 1200
Compatible with widescreen LCD monitors
Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
Supports multimedia keyboards
Supports wireless keyboards and mice
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Mac/Sun keyboard support and emulation**
HDCP Compliant
Non-Powered
Firmware upgradable
* This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
** • PC keyboard combinations emulate Mac/Sun keyboards.
• Mac/Sun keyboards work only with their own computers.
