KE6940 ATEN 宏正 DVI KVM Over IP信号延长器 支持2台DVI屏幕
编号：KE6940
品牌： [查询该品牌全部商品] 单位：个 积分：0 重量：1125 克 采用Over IP KVM解决方案的专业功能，KE6940系列是以IP为主的DVI KVM信号延长器，可在因特网上的任何地方从远程USB控制端(USB键盘、USB鼠标、DVI屏幕)访问电脑系统。KE6940双画面信号延长器的两端各支持两台DVI屏幕，能让视频输出到两台屏幕画面。
商品售价：￥0.00
订购数量：
个
|
商品介绍
详细参数
KE6940
DVI KVM Over IP信号延长器
KE6940 Zoom In KE6940 KE6940 KE6940
ATEN最为人所知的是其擅长提供以联机能力和访问管理解决方案为导向的创新技术。在此，让我们为您介绍全新的Altusen™ KE6940 DVI KVM Over IP信号延长器。其结合了独特功能和崭新技术，针对需要在IT系统架构上或以外的区域将电脑信号延伸到控制端，提供了最佳解决方案。
采用Over IP KVM解决方案的专业功能，KE6940系列是以IP为主的DVI KVM信号延长器，可在因特网上的任何地方从远程USB控制端(USB键盘、USB鼠标、DVI屏幕)访问电脑系统。KE6940双画面信号延长器的两端各支持两台DVI屏幕，能让视频输出到两台屏幕画面。

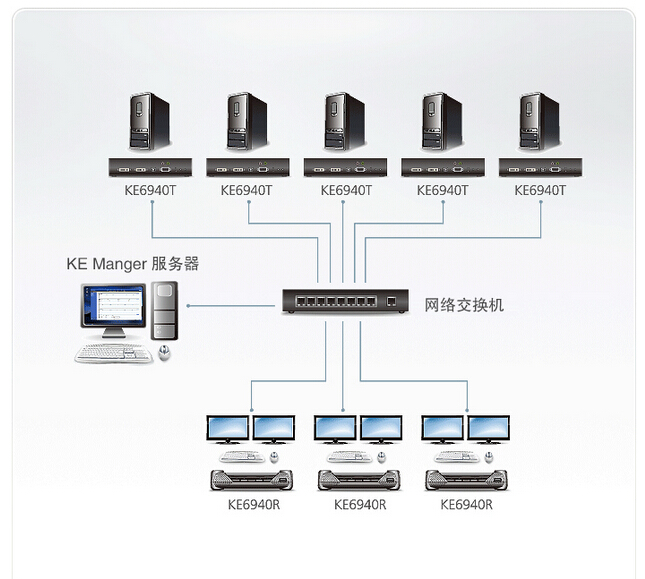

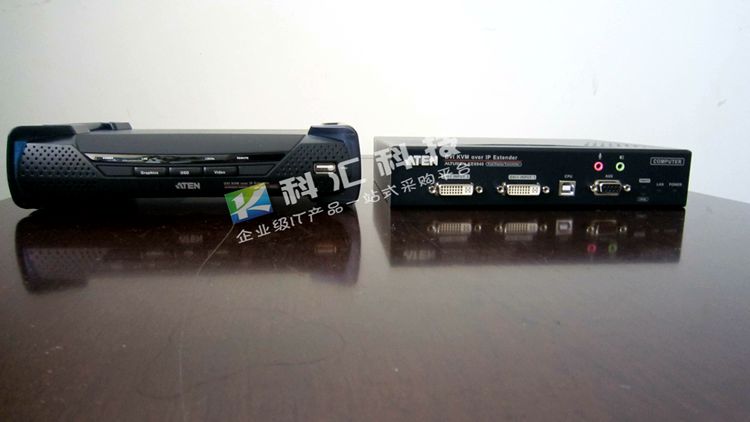

DVI KVM Over IP信号延长器内含一个连接到电脑的发送端，以及一个从不同位置提供控制端访问的接收端。通过Cat 5e线缆与标准的TCP/IP网络，可让远程控制端访问电脑，以进行点对点、点对多点、多点对多点的管理功能。其好处是可与任何安装环境完美搭配。例如，您需要在方便使用的地方放置控制端，但是又想要将电脑摆放在一个远离使用的键盘、鼠标和屏幕等的安全位置。而矩阵式信号延长器则是以多种方式来连接单一或多个电脑对控制端的组合：一对一(信号延长器模式)、一对多(分割模式)、多对一(切换模式)或多对多(矩阵模式)。
KE Matrix Manager®软件提供用户名称/密码认证、自动侦测相同子网络上所有KE6940设备等进阶功能，并定义可切换和共享的联机。全新安全性功能也提供额外的保护，支持用于安全数据传输的AES-128位加密。而RADIUS、LDAP、AD或远程用户认证也为联机安全性提供了加强的保护。通过OSD、RS-232支持和自动MDIX，KE6940为想要在内部网络上取得完整数字信号延长的用户提供最有效、最方便的解决方案。
Bookmark and Share

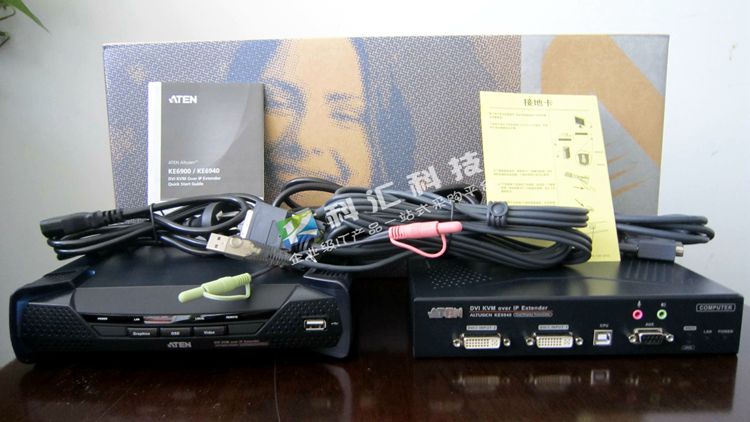

包装明细
1 x KE6940T DVI KVM Over IP 信号延长器 (传送设备)
1 x KE6940R DVI KVM Over IP 信号延长器 (接收设备)

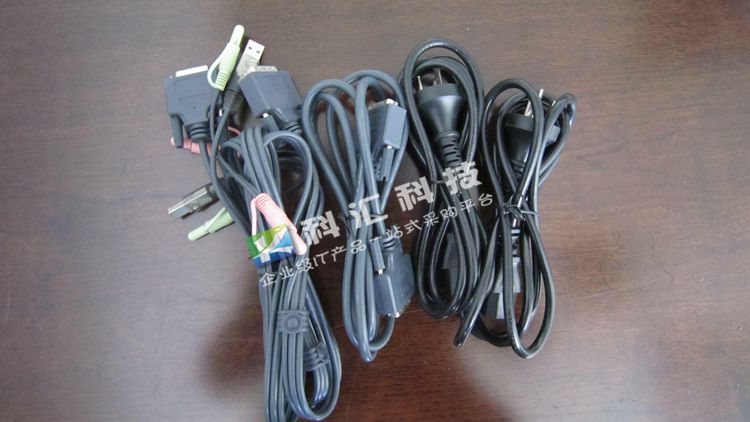

2 x 电源适配器
1 x USB KVM线缆
1 x DVI-D 信号线 2m
1 x 机架安装配件
1 x 使用说明
专利号码
JP 4922722 , CN ZL 200610135911.0 , US 7752339 , TW I351192 , US 7945703
通过内部网络远程访问您架设在KVM上的电脑
双控制端操作 - 从发送端和接收端的USB键盘、屏幕和鼠标控制端来控制您的系统
RS-232串行端口2 - 能让您联机到串口终端机进行设定，以及触控屏幕和条形码扫描仪之类的串口设备
绝佳画质 - 高达1920x1200@60Hz；24位色彩深度
支持标准VGA分辨率，从640x480到1920x1200@60Hz
发送端和接收端设备上都有OSD(On Screen Display)
支持AP GUI操作
远程登入安全性
支持DVI数字和模拟屏幕
内建8KV/15KV ESD保护和2KV突波保护
支持立体声扬声器和立体声麦克风
自动MDIX - 自动侦测线缆类型
支持宽屏幕分辨率
支持高画质影像串流
支持虚拟媒体
支持热插拔
可安装于机架上
支持固件更新
功能 KE6940T KE6940R
接口 USB 虚拟媒体 N/A 2 x USB Type A 母头 ( 白 )
控制端 键盘 1 x USB Type A 母头 ( 白 )
显示器 2 x DVI-I
鼠标 1 x USB Type A 母头 ( 白 )
扬声器 1 x Mini 立体声插口 母头 ( 绿 )
麦克风 1 x Mini 立体声插口 母头 ( 粉红 )
RS-232 1 x DB-9 公头 ( 黑 )
电脑端 键盘 / 鼠标 USB Type B 母头 ( 白 ) N/A
扬声器 1 x Mini 立体声插口 母头 ( 绿 ) N/A
麦克风 1 x Mini 立体声插口 母头 ( 粉红 ) N/A
RS-232 1 x DB-9 母头 ( 黑 ) N/A
显示器 2 x DVI-I N/A
电源 1 x DC 插口( 黑 )
网络 1 x RJ-45 ( 黑 )
按键开关 OSD N/A 1 x 按键
影片模式 N/A 1 x 按键
影像模式 N/A 1 x 按键
控制端切换 / 固件更新 1 x 滑动开关
重置(Reset) 1 x 半嵌式按键
LED指示灯 网络 1 ( 绿/ 橘 )
电源 1 ( 蓝 )
本地 1 ( 绿 )
远程 1 ( 绿 )
信号仿真 键盘 / 鼠标 USB
耗电量 DC 5V
视频分辨率 高达 1920 x 1200 @ 60Hz
作业环境 操作温度 0–50°C
储存温度 -20–60°C
湿度 0–95% RH, 无凝结
机体属性 外壳 金属
重量 1.15 kg 1.25 kg
尺寸
(长 × 宽 × 高) 21.50 x 16.29 x 4.56 cm 22.75 x 17.16 x 5.48 cm
KE6940
DVI Dual Display KVM Over IP Extender
KE6940 Zoom In KE6940 KE6940 KE6940 KE6940
ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such, we introduce the new Altusen™KE6940 DVI KVM Over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.
Utilizing expertise in Over IP KVM solutions, the KE6940 series is an IP based DVI KVM Extender that allows access to a computer system from a remote USB console (USB keyboard, USB mouse, DVI monitor) anywhere over an intranet. The KE6940 Dual View Extender supports two DVI displays at each end, allowing the video output to display on two monitors.
The DVI KVM Over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e cable that allows point-to-point, point-to-multipoint, and multipoint-to-multipoint administration. This is perfect for use in any type of installation where you need to place the console where it is convenient, but you want the computer to reside in a secure location - away from the keyboard, mouse and display in use. As a Matrix Extender it can connect single/multiple: computers-to-consoles in several ways: one-to-one (Extender mode), one-to-many (Splitter mode), many-to-one (Switch mode), or many-to-many (Matrix mode).
The Matrix Manager® software provides advanced features for username/password authentication, autodetection of all KE6940 devices on the same subnet and define connections that can be switched and shared. New security features also provide extra protection, supporting AES-128bits encryption for secured data transmission, while RADIUS, LDAP, AD or remote user authentication provides added layer of connection security. With an OSD, RS-232 support, and Auto MDIX, the KE6940 is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
Remotely access computers on your KVM installation via intranet
Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
Supports standard VGA resolutions from 640x480 to 1920x1200 at 60Hz
OSD (On Screen Display) on the Receiver configures both units
Supports AP GUI operation
Remote login security
DVI digital and analog monitor support
Built-in 8KV/15KV ESD protection and 2KV surge protection
Supports stereo speakers and stereo microphone
Auto-MDIX - automatically detects cable type
Supports widescreen formats
Support High-Quality Video streaming
Virtual Media Support
Hot pluggable
Rack Mountable
Upgradeable firmware
| Function | KE6940R | KE6940T |
| Connectors | ||
| Virtual Media | 2 x USB Type A Female (White) | N/A |
| Console Ports | 2 x USB Type A Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black) | 2 x USB Type A Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Male (Black) |
| KVM Ports | N/A | 1 x USB Type B Female (White) 2 x DVI-I Female (White) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) 1 x DB-9 Female (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| LAN Ports | 1 x RJ-45 (Black) | 1 x RJ-45 (Black) |
| Switches | ||
| OSD | 1 x Pushbutton | N/A |
| Video | 1 x Pushbutton | N/A |
| Graphics | 1 x Pushbutton | N/A |
| Reset | 1 x Semi-recessed Pushbutton | 1 x Semi-recessed Pushbutton |
| LEDs | ||
| Link | 1 (Green / Orange) | 1 (Green / Orange) |
| Power | 1 (Blue) | 1 (Blue) |
| Local | 1 (Green) | 1 (Green) |
| Remote | 1 (Green) | 1 (Green) |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Power Consumption | DC 5V | DC 5V |
| Video Resolution | Up to 1920 x 1200 @ 60Hz | Up to 1920 x 1200 @ 60Hz |
| Environmental | ||
| Operating Temperature | 0–50°C | 0–50°C |
| Storage Temperature | -20–60°C | -20–60°C |
| Humidity | 0–95% RH, Non-condensing | 0–95% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 1.25 kg ( 2.75 lb ) | 1.15 kg ( 2.53 lb ) |
| Dimensions (L x W x H) | 22.75 x 17.16 x 5.48 cm (8.96 x 6.76 x 2.16 in.) | 21.50 x 16.29 x 4.18 cm (8.46 x 6.41 x 1.65 in.) |
